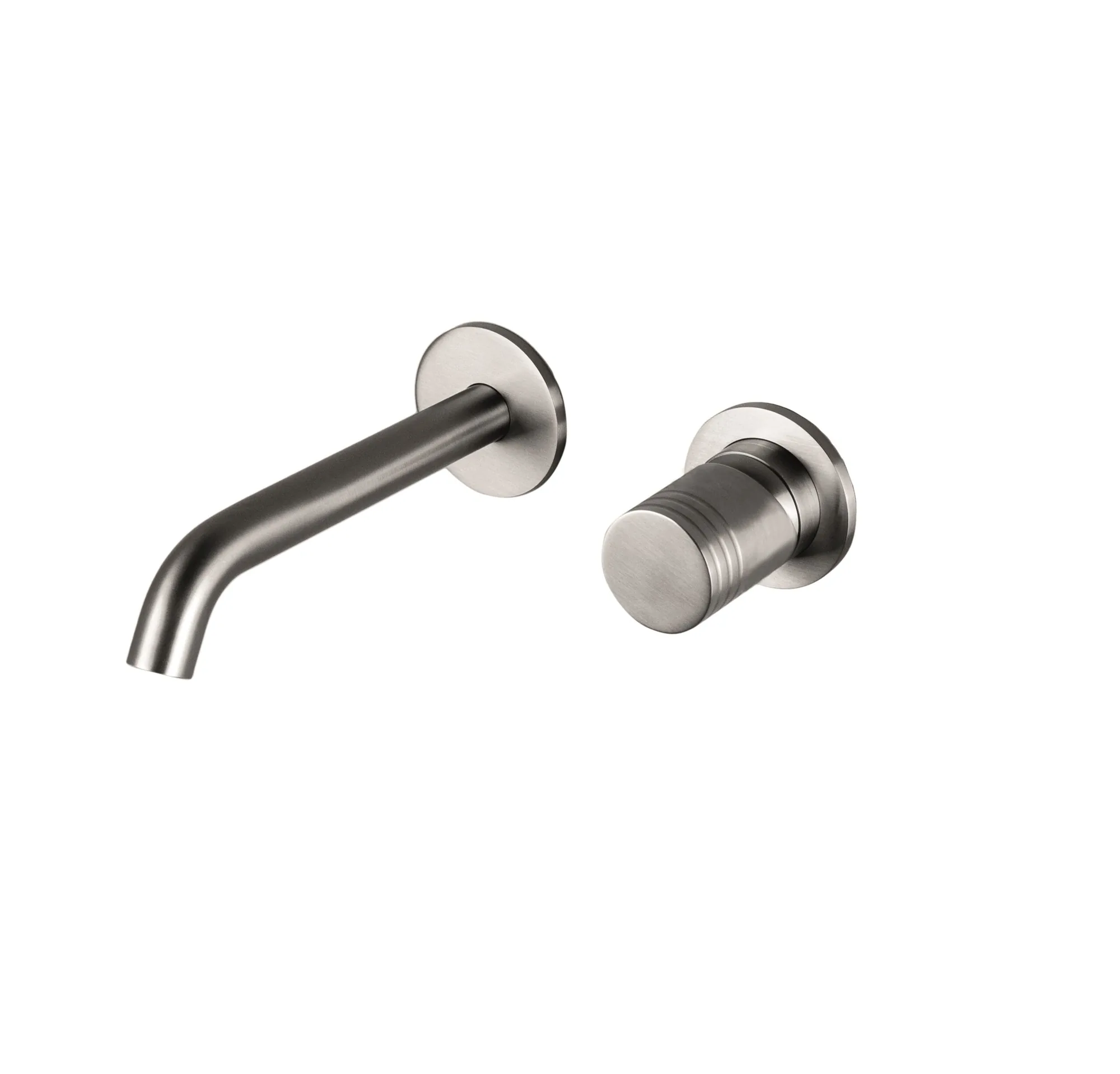

Concealed basin mixer with 16 cm spout in 316L stainless steel

A concealed basin mixer for wall-hung and countertop washbasins, built to sit behind the wall with only the spout and control exposed on the finished surface. The 40mm body is machined from AISI 316L stainless steel, the marine grade that resists the chlorides in seawater, chlorinated water and heavy cleaning regimes, which is why specifiers choose it for coastal developments, spa bathrooms and other high-humidity commercial projects where plated brass corrodes over time.

Key features

• Built-in valve body is included, so there is no separate concealed unit to source.
• The 160mm spout reaches well over deep countertop basins without crowding the bowl.
• M16.5x1 anti-limescale aerator keeps flow clear in hard-water areas.
• Four PVD finishes, Brushed, Copper, Black and Gold, let a bathroom match across the Loira range.
• Solid 316L stainless resists pitting corrosion where plated fittings eventually fail.

Specification and installation

Fit it as a concealed mixer: the valve body sets into the wall before tiling, then the trim and 160mm spout dress the finished face once the basin is in. The G1/2" connection joins standard concealed rough-in pipework, and the M16.5x1 aerator thread takes standard anti-limescale cartridges. Choose Brushed, Copper PVD, Black PVD or Gold PVD to run alongside the rest of the Loira collection, and it carries Tubico's two-year warranty.
