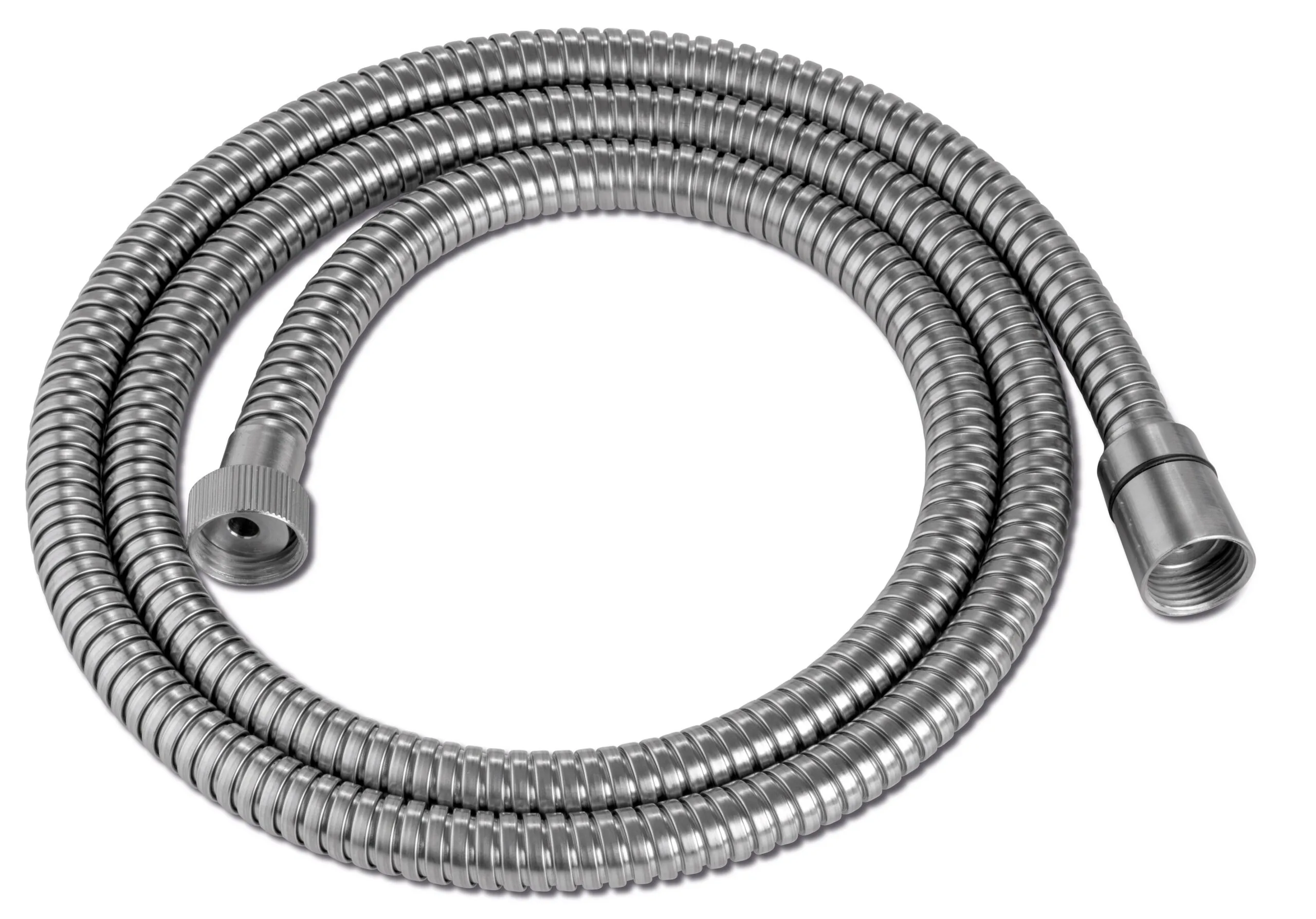

Stainless steel hose

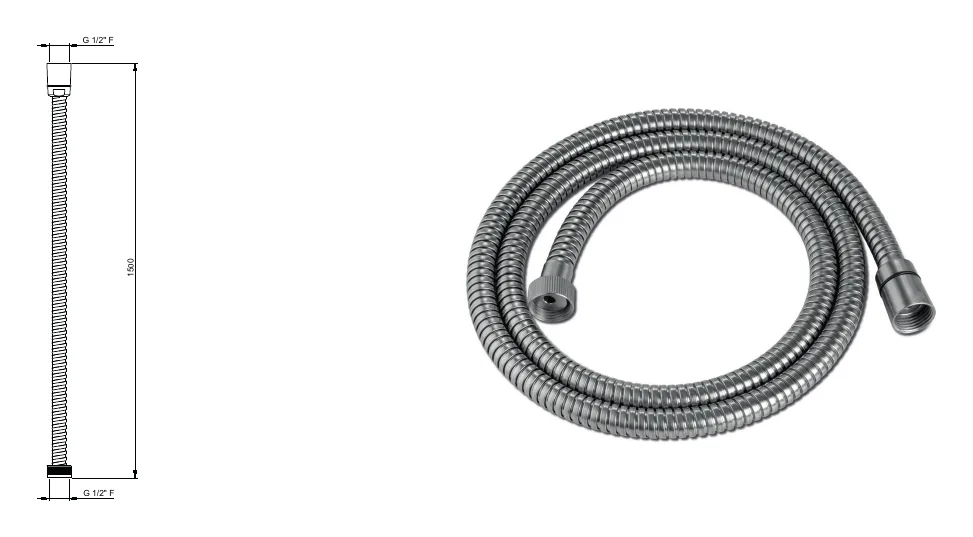

Connecting a concealed valve body to the bath filler or shower outlet it feeds relies on flexible hose that outlasts the fitting itself, and this stainless steel connector is built for that job rather than for display. Both ends carry a G1/2 BSP female thread, matching the connection size used across the Colorado and Nilo ranges, so it drops into an existing installation without adapters. At 1500mm it reaches from a recessed body to a freestanding bath or a raised shower arm.

Key features

• Solid AISI 304 tube resists kinking and split failure better than braided-rubber connectors
• G1/2 BSP female threads at both ends match Colorado and Nilo valve outlets directly
• 1500mm length spans from a recessed body to a bath spout or riser rail
• Supplied in brushed steel only, since it sits out of sight once installed

Specification and installation

Thread each end onto its valve outlet by hand before finishing with a spanner on the flats, taking care not to twist the tube itself. Route it clear of sharp masonry inside the cavity, since a kinked hose restricts flow before it fails outright. It comes in brushed steel only, since it sits behind the finished surface; finish choice belongs to the visible outlet it feeds, and it pairs with any Colorado or Nilo fitting sharing the same thread.
