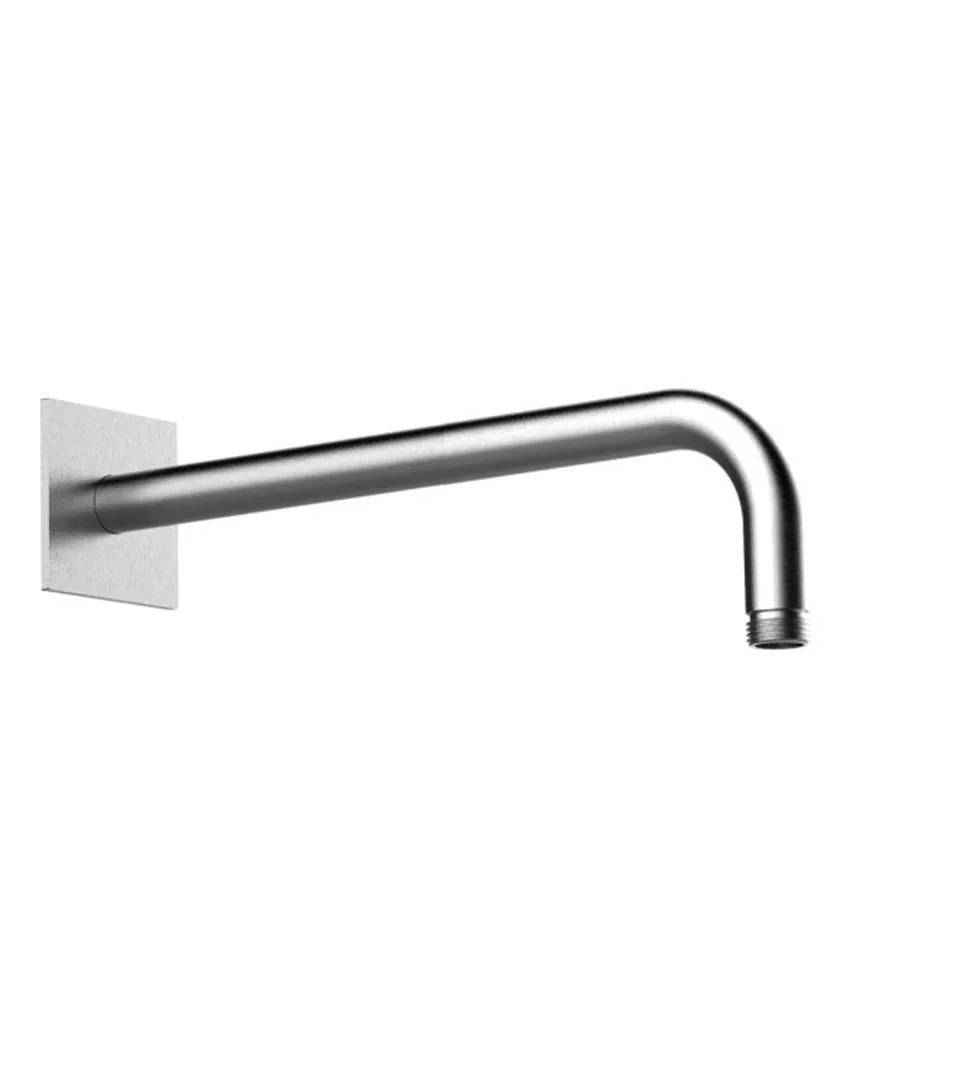

350 mm Horizontal Shower Arm, Square Plate

Choose this arm when the head on a wet room wall has to stand off the tiling far enough for the water to fall on the user and not on the wall. The reach is 350 mm from a flat wall fixing, and the body is AISI 316L stainless steel: molybdenum-bearing, chloride resistant, and the grade specified for bathrooms in coastal buildings, hotels and spas where the arm is never dried. Any head or hand shower that shares the connection can be fitted to it.

Key features

• 350 mm projection clears the tiled wall by a workable distance
• Flat to the wall, so the plate can be sealed and forgotten
• 316L stainless steel resists corrosion in an unheated wet room
• Brushed and polished steel, deep grey, gold PVD and Tinta
• Accepts a rain head, a handset or a slide bar arrangement

Specification and installation

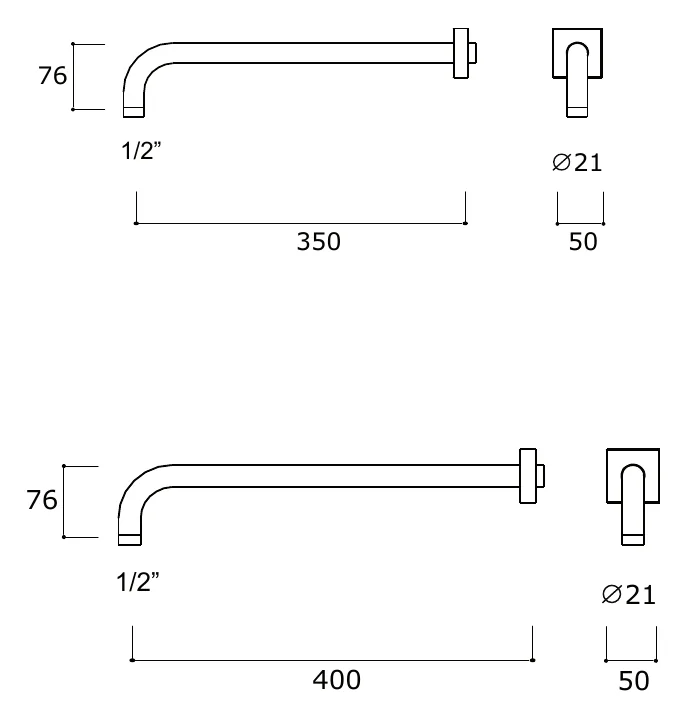

Set the height of the arm against the finished floor and the spray zone, then anchor the plate into solid substrate and seal the perimeter. Five finishes are offered: brushed stainless steel, polished stainless steel, deep grey, gold PVD and Tinta. The plate size, inlet and thread are not published for this record, so confirm the fixing from the drawing before the tiles are cut.
