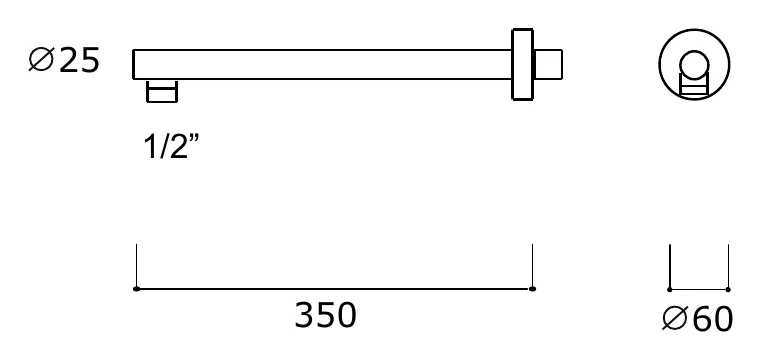

350 mm Horizontal Wall Arm for Fixed Shower Heads

A horizontal shower arm carries a fixed shower head clear of the wall, so water falls from a point the installer chooses rather than straight down the tiling. This 350 mm arm is built in AISI 316L, the molybdenum-bearing grade that resists chlorides, which is why it suits coastal, spa and pool work as well as busy family bathrooms. It decides where the head sits in the room.

Key features

• Pushes the fixed head away from the wall so water runs clear of the tiling
• 350 mm projection, giving a defined head position across the tray
• AISI 316L stainless steel, the grade used for chlorinated and coastal water
• Five finish options so the arm can match the head, rail and tapware
• Single part, ordered alongside the fixed head it carries

Specification and installation

Fix the arm to a sound wall at the height the head is wanted; the 350 mm projection is what sets the head position over the tray. Order it with the wall outlet, the fixed head and the pipework feeding it. Brushed stainless steel, polished stainless steel, deep grey, gold PVD and Tinta are all offered, so the arm can be matched to the rest of the scheme.
