Compact Wall Mounted Bath Spout With Hot And Cold Controls

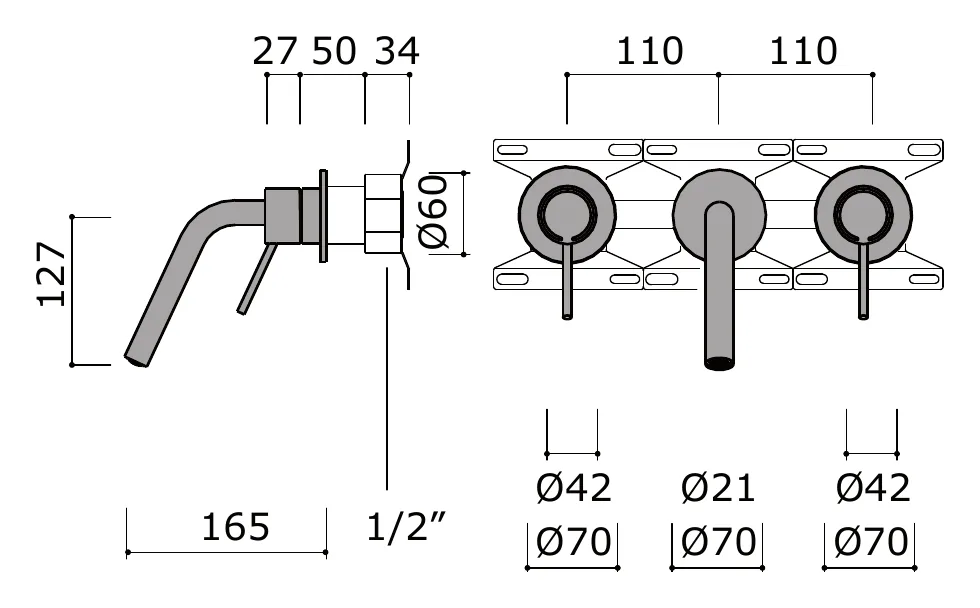

Not every bath wants a long projection. Where the tub sits in a tight recess, against a nib, or on a shallow rim, a spout that reaches too far simply drips down the outside of the bath. This wall mounted bath spout keeps the projection down at 165 mm with a body height of 127 mm and a 21 mm spout bore, and handles hot and cold water at the fitting. The material is AISI 316L stainless steel, the grade that carries chloride resistance and daily commercial wear without pitting.

Key features

• 165 mm projection, sized for shallow rims, recesses and tight alcove installs
• 21 mm spout bore set 127 mm above the wall face for a clean splashback line
• Hot and cold water controlled on the fitting itself, no remote to position
• Marine grade stainless steel body in AISI 316L, built for wet commercial sites
• Five finishes covering brushed, polished, deep grey, gold PVD and Tinta

Specification and installation

Set the in-wall positions at first fix, before the tile or panel finish, since the spout breaks through a wall face that cannot be revisited later. The short projection keeps it clear of a bath rim and easy to wipe down, which matters as much in a hotel as it does at home.
