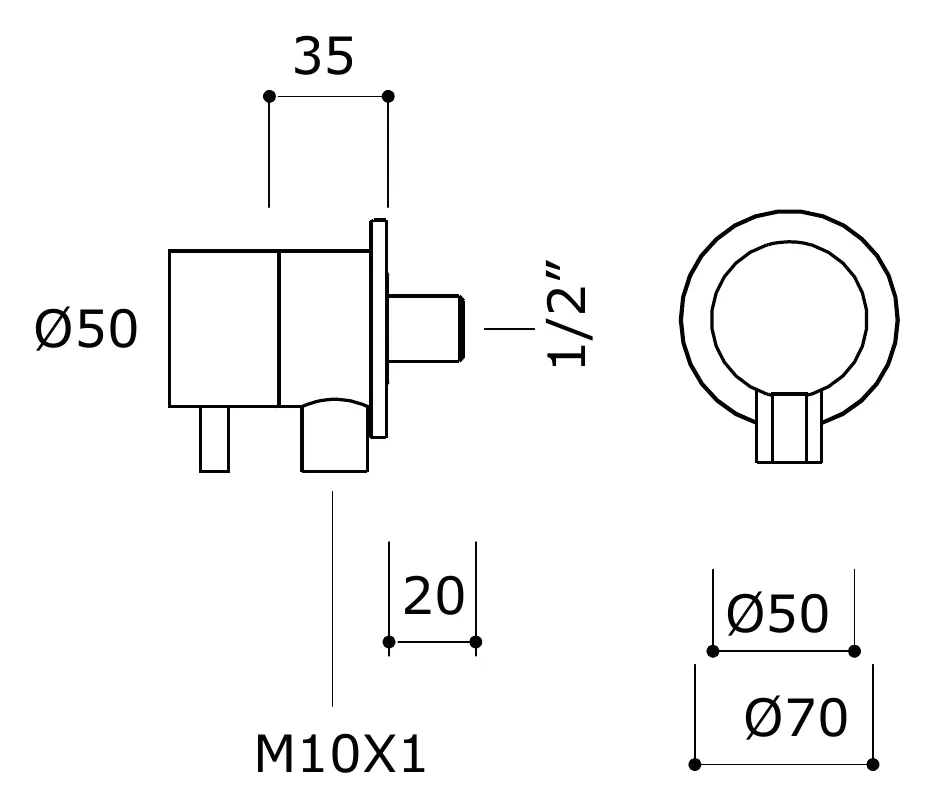

M10x1 Isolating Valve for Rigid Supply

On a wall hung basin or a concealed cistern, the isolation valve is the piece nobody sees until something leaks. This one takes an M10x1 flexible connection and is cast in AISI 316 stainless steel, so it sits in a duct, a plinth or an access void without corroding through. Its job is plain: close one fixture without touching the rest of the property, which is what lets a hotel room or a hospital wing be maintained one unit at a time.

Key features

• M10x1 flexible inlet takes up alignment error in fixed pipework
• Marine grade 316 stainless steel, resistant to chloride and standing damp
• Isolates a single fixture, so a room can be serviced without a shutdown
• Compact enough to sit inside a plinth or a ducted void
• Five finishes, matching tapware in the same room

Specification and installation

Fitted inline on the supply at a point the installer can still reach, which in a ducted installation means behind an access panel rather than under a sealed floor. It is held in brushed stainless steel, polished stainless steel, deep grey, Tinta and gold PVD from a single body, so the parts list stays simple across a whole floor. Thread length and hose length are not published, so confirm both before ordering volume.
