Wall Mounted Basin Mixer

Where the basin is fixed to the wall, the tap has no reason to sit on the counter. This wall mounted mixer moves the water control behind the tiled face, leaving a clear surface around the bowl and the service hidden inside the wall. It is a common choice in public washrooms and hotel en suites, where the counter is wiped down daily. AISI 316L stainless steel, supplied in five finishes.

Key features

• Counter stays clear, so it can be cleaned without working round the tap
• Service and connections are concealed inside the finished wall
• Molybdenum-bearing 316L grade suits high humidity washdown areas
• Brushed and polished stainless steel options for hospital and hotel work
• Deep grey, gold PVD and Tinta extend the choice for design led schemes

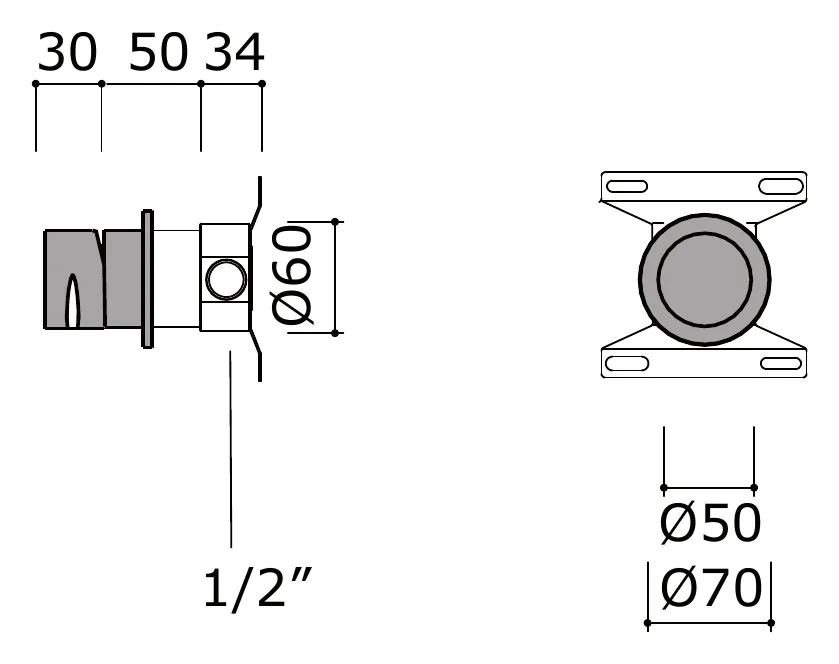

Specification and installation

Build the wall in two skins and fit the body between them, leaving an access panel or a tiled recess for servicing. The height of the outlet above the bowl is a client decision and the supplier should confirm the spout projection, which the product record does not give. Full tiling over the body means the work has to be right the first time.
