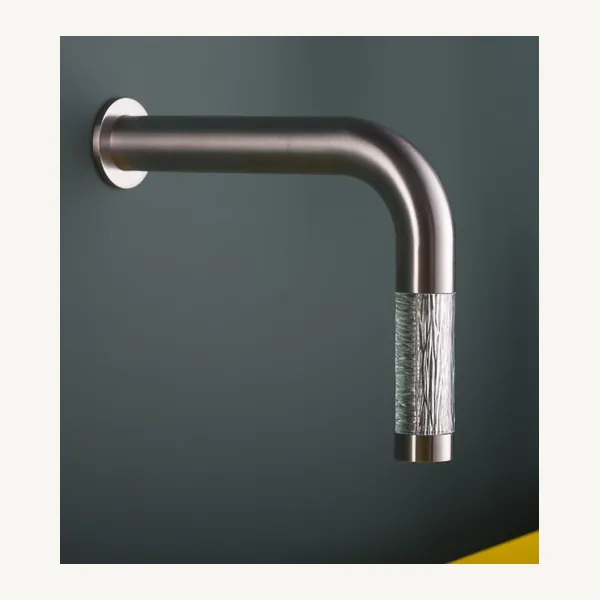

Wall Mounted Basin Spout with Glass Element

The job of a wall mounted basin spout is to put water where a mixer cannot go. This one reaches 230 mm out from the tiled wall and carries a glass element through the body, so the run of water is seen from the side as it falls. Set it above a wall hung basin in a hotel bathroom, a spa washroom or a private ensuite, and the counter stays free of tap holes while the wall behind carries the fitting and the controls.

Key features

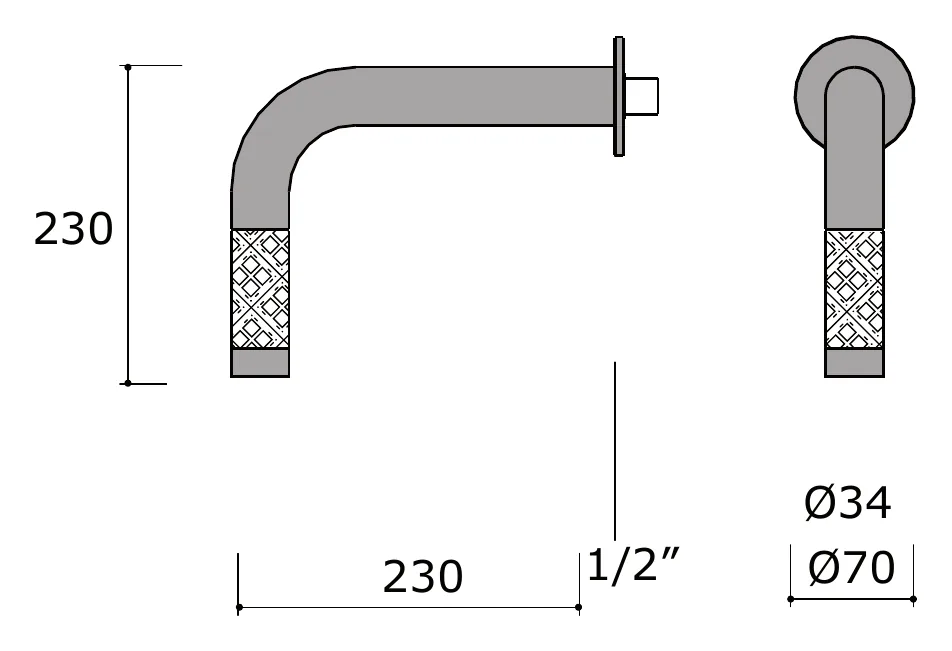

• 230 mm projection clears the basin rim without a deck tap hole
• Glass element gives the water a visible side profile
• AISI 316L stainless steel for humid rooms and coastal installs
• Available singly, so a second basin can be added later
• Four finishes, including gold PVD and deep grey

Specification and installation

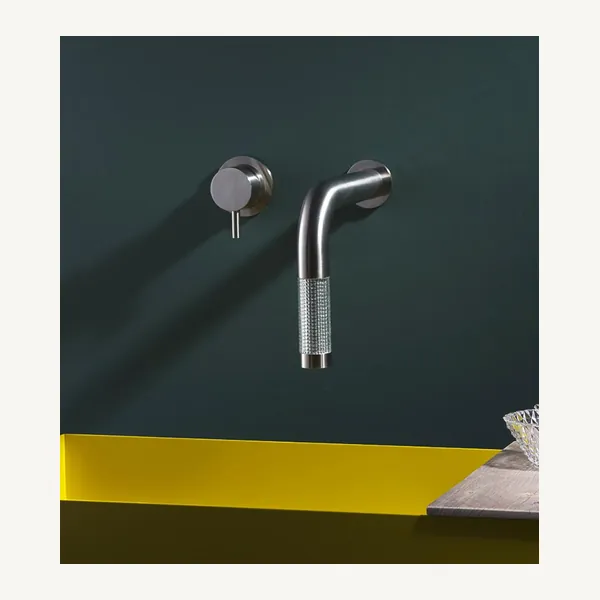

The body is fixed to the finished wall, so the in-wall pipework and the basin centreline are set out together and the tiling follows. It arrives in brushed stainless steel, Tinta, deep grey or gold PVD. Pair it with a matching wall mounted or deck mounted mixer, or run it against a basin fed by a separate control. Check the finished wall level before the pipework is boxed in, since the spout sets the outlet height for the whole basin.
