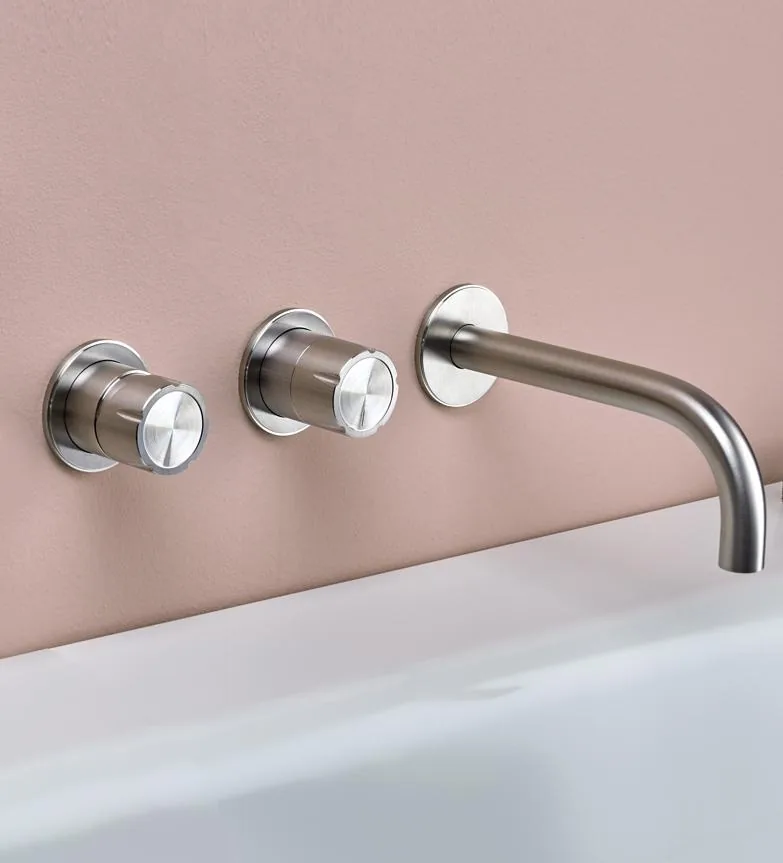

Wall Mounted Bath Set with Mixer, Diverter and Spout

A two-way diverter and a mixer on one wall, with the spout above, give a bath everything it needs from a single valve. The set is cast in AISI 316L stainless steel, the molybdenum-bearing grade suited to a tiled wall in a hotel or spa where plated fittings would pit. Wall mounting leaves the tub rim clear, so it suits roll-top tubs, narrow decks and tight alcoves where a deck fitting will not fit.

Key features

• Mixer, two-way diverter and spout supplied as one matched wall set
• One valve covers the fill and the overflow function, so fewer escutcheons to grout
• Solid 316L stainless steel throughout, no plated brass to wear through
• Five finishes, so one choice can run across a whole project
• Clear wall installation keeps the tub deck uncluttered

Specification and installation

All three pieces mount to the finished wall on a shared horizontal, so the rough-in is planned before tiling and the components are aligned in one pass. Finishes run brushed stainless steel, polished stainless steel, deep grey, gold PVD and Tinta. The pack records no projections, inlet sizes or thread, so confirm those against the wall build-up before the tiles are laid.
