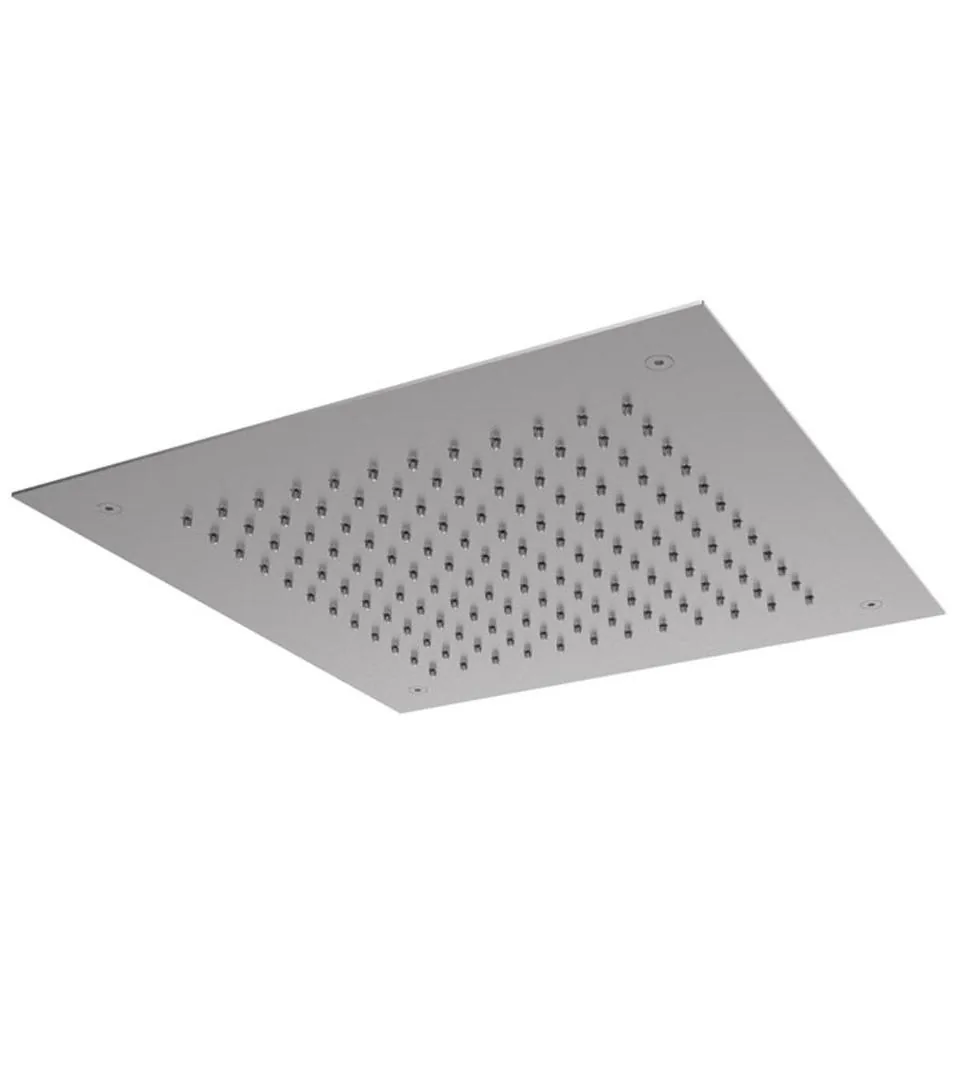

380 x 380 mm Ceiling Mounted Rain Head, Single Pattern

Halfway between the small overhead head and the wide one, this 380 x 380 mm square plate is the mid size most showers actually want. It covers more of a bather than a 300 mm square without the clearances a 500 mm plate demands, and it delivers one rain pattern, evenly across the face. The body is AISI 316L, the molybdenum-bearing grade, so it belongs where the water is treated or the shower takes heavy use. Set the position and the ceiling void before the plasterboard is closed.

Key features

• 380 x 380 mm square, a mid size between the small and wide heads
• Single rain pattern, even across the whole face of the plate
• Square plate, so wall clearance is the same on every side
• AISI 316L, the grade for treated water and heavy commercial showers
• Brushed or polished stainless steel, fixed to the ceiling at half inch

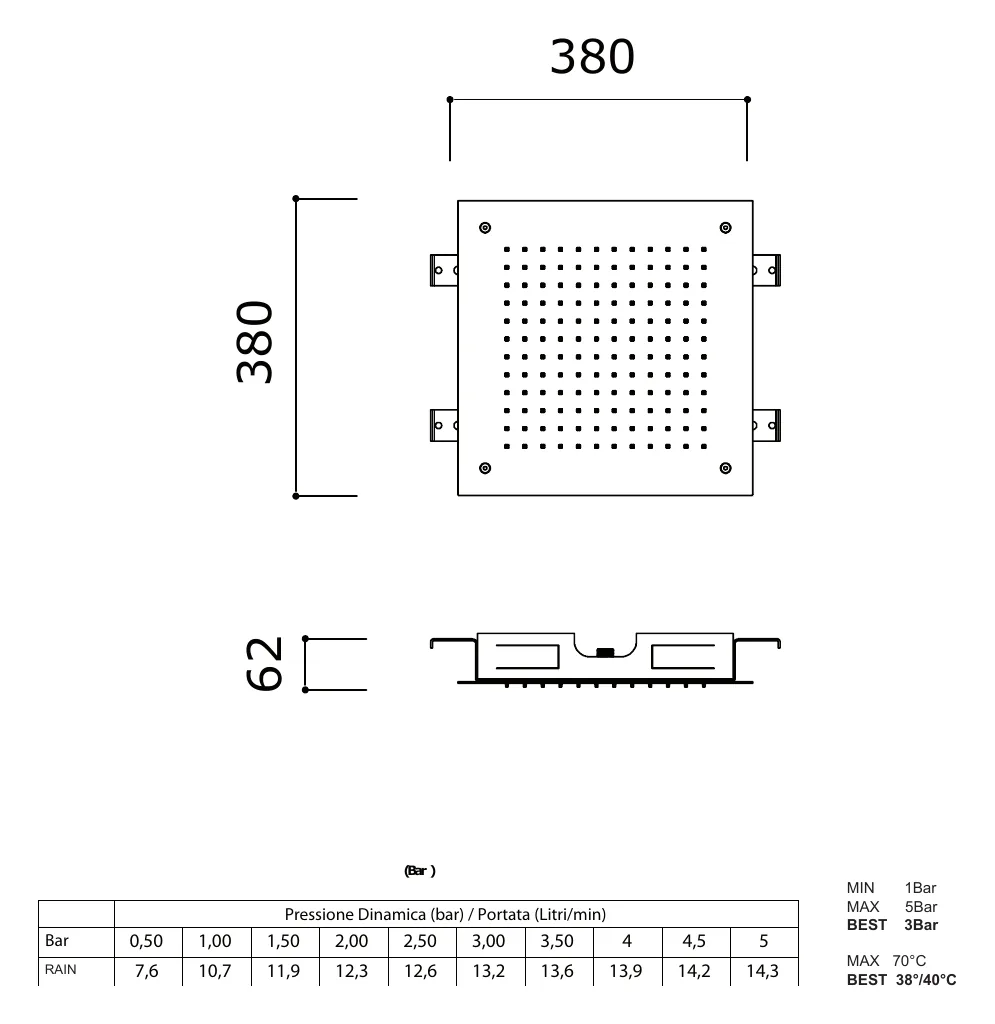

Specification and installation

The head is fixed to the ceiling and fed from the void above it at half inch connections, so the plumbing and the position are settled before the ceiling is closed. It suits a shower room where a wide plate would crowd the walls, and it pairs with a freestanding column or a wet floor below. Brushed and polished stainless steel are both available.
